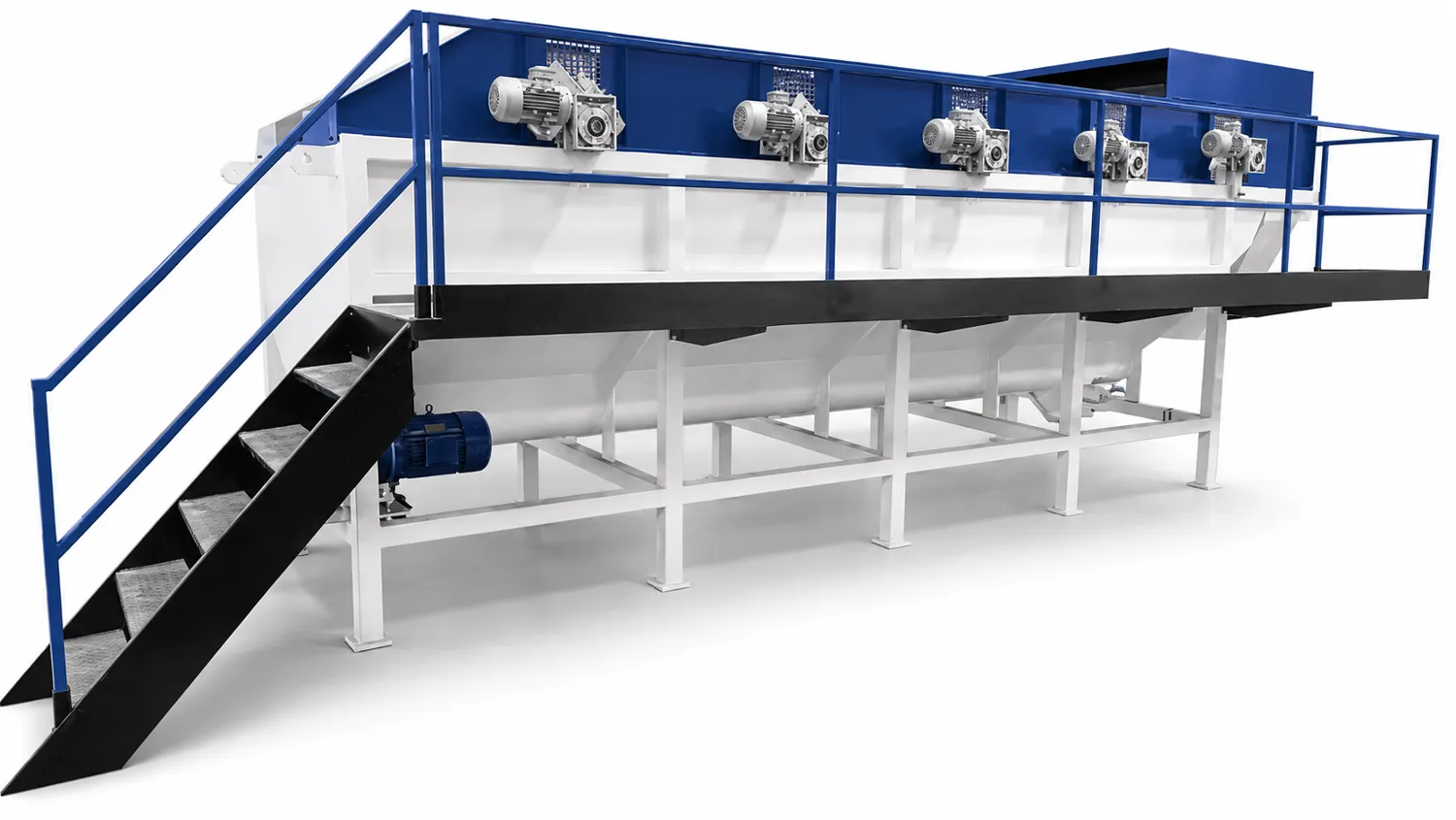

Vasca di separazione a galleggiante

A sink-float separation tank efficiently segregates materials that float from those that sink. In the context of PET recycling, where PET bottles are granulated whole, a significant portion of contamination comes from plastic bottle caps, which are not composed of PET plastic. Instead, they are made from either polypropylene (PP) or polyethylene (PE).

Principio di funzionamento

Rumtoo’s sink-float separation tank utilizes the density of water to achieve separation. Water has a density of 1 g/cm³, meaning any material with a higher density will sink, while material with a lower density will float. In PET bottle recycling, when the stream of material enters the sink/float separation tank filled with water, PET plastic sinks to the bottom, while PP/PE bottle caps float to the surface.

Specially engineered rotating drums propel the floating material (the contamination) forward into a storage silo for collection. Screw conveyors at the bottom of the separation tank gather the PET flakes, moving them onward to the next piece of machinery.

Specifiche

For optimal performance, it’s essential for the material to soak in the water for an extended period. This not only enhances the cleaning process but also ensures that all sinking PET flakes have sufficient time to settle at the bottom of the tank. Therefore, we offer a standard 4-meter separation tank with an option to extend it to 6 meters.

To ensure the longevity of Rumtoo’s water separation tank, the tank’s interior, as well as the rotating drums, are constructed from type 304 stainless steel, which is highly resistant to both oxidation (rust) and corrosion.

Specificazione	Dettagli
Interior Width	1500mm – 2000mm
Total Length	4 – 6 meters
Interior Material	Type 304 Stainless Steel
Exterior Frame	Carbon Steel
Screw Conveyor Motors	5.5KW + 3.7KW
Rotating Drum Motors	0.37KW + 2.2KW

Garanzia e installazione

Ogni macchina per il riciclaggio include una garanzia limitata di 1 anno. Forniamo servizi di installazione, con i nostri ingegneri che visitano il tuo sito per assisterti nel processo di installazione. Possono essere presi accordi anche per squadre di manutenzione ordinaria e consulenti operativi.
