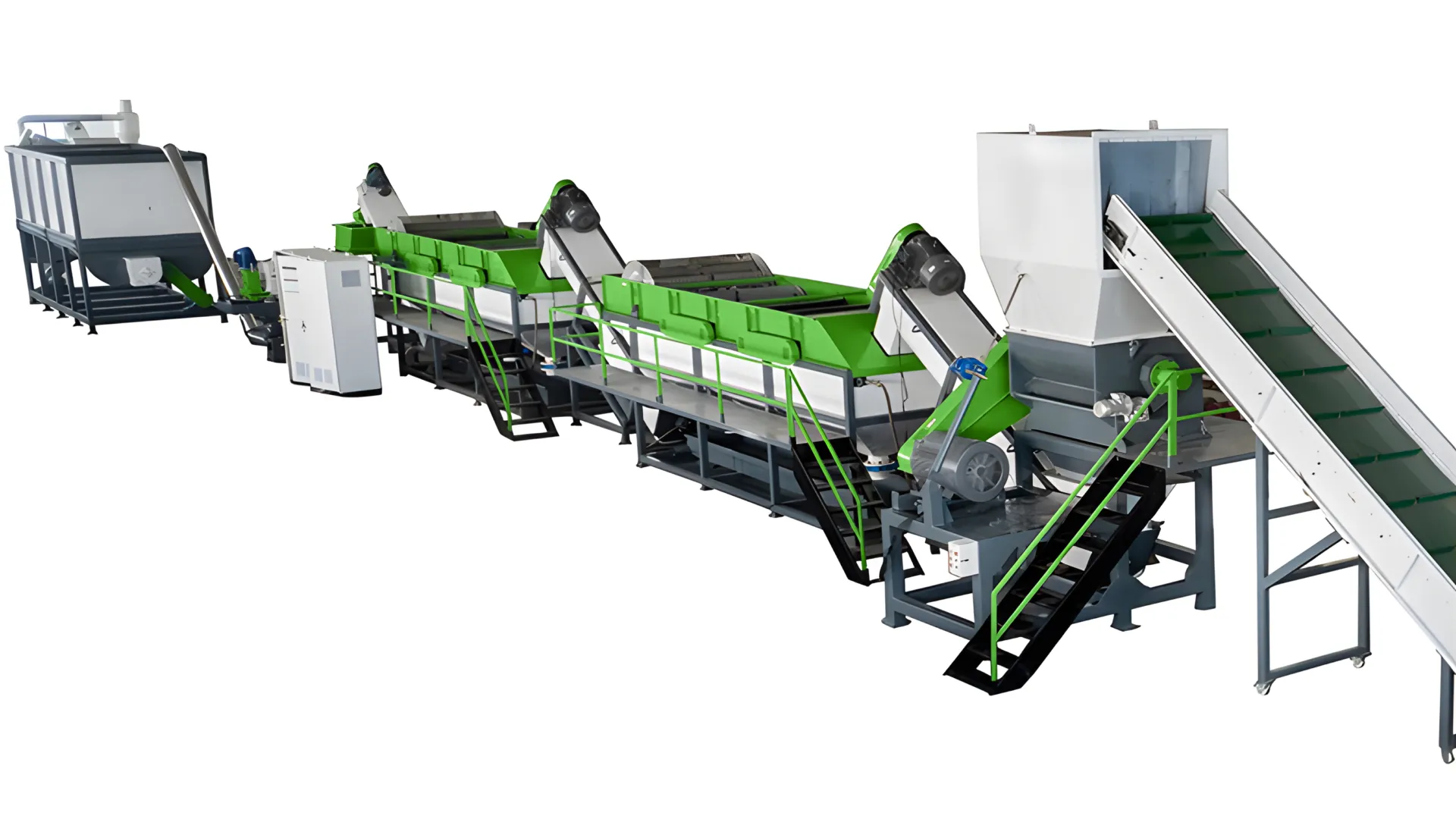

Rigid Plastic Washing Line For PP, HDPE, PVC

The Screw Feeder is designed for durability and efficiency in material handling processes.

• Material: 304 stainless steel
• Shell & Blade Thickness: 3mm
• Screen Hole Thickness: 2mm
• Spiral Diameter: Customized based on output size

Primary Functions:

• Conveying materials
• Filtering water
• Cleaning surface sediment from materials

The Wet Plastic Granulator is an upgraded version of our general-purpose granulators, designed for efficient cutting and pre-cleaning of plastic bottles, films, and rigid materials.

• Rotor Speed: 400-600 RPM
• Blade Material: D2 high-carbon, high-chromium steel
• Cutting Arrangements: V-shape or double-scissor cut
• Screen Filter Size: 10mm – 100mm (customizable)

Primary Functions:

• Cutting plastic materials
• Pre-cleaning and loosening contaminants
• Reducing dust buildup in recycling plants
• Extending blade and machine durability

The Friction Washer is designed for efficient cleaning and transportation of plastic flakes, films, and regrind materials.

• Rotor Speed: 500-600 RPM
• Water System: Top inlet, bottom outlet
• Operation: Continuous
• Cleaning Method: Friction-based

Primary Functions:

• Cleaning plastic materials
• Transporting materials between machinery
• Removing soil, sand, and other contaminants

Our Floating Separation Tank is designed to efficiently segregate PP and PE plastics from co-mingled streams while simultaneously cleaning the materials for further processing.

• Interior Width: 1000mm – 1800mm
• Total Length: 4 – 7 meters
• Interior Material: Type 304 Stainless Steel
• Exterior Frame: Carbon Steel
• Paddle Motors: 1.5KW*2 (frequency control)

Key Features:

• “W” shaped bottom for improved efficiency
• Dual-section design for better contamination management
• Water-based separation for PP and PE plastics
• Simultaneous cleaning and separation

Our advanced continuous Hot Washer system offers unparalleled efficiency and cleaning abilities for PET flakes, HDPE flakes, and other plastic regrinds. It’s designed for continuous operation and is extremely effective at removing oils and other stubborn contaminants in a single wash cycle.

• Operation Mode: Continuous
• Washing Method: Hot chemical bath
• Internal Mechanism: High-speed rotary paddles
• Suitable Materials: PET flakes, HDPE flakes, other plastic regrinds

Key Features:

• Continuous operation for higher efficiency
• Effective removal of oils and stubborn contaminants
• Single wash cycle for most applications
• Friction-based cleaning for thorough results
• Can be combined with cold washing system for enhanced results

Our Centrifugal Dryer Dewatering machine is a highly efficient, low energy consuming equipment designed to partially remove water from plastic materials using centrifugal force. It’s an essential first step in PE film and PET bottle washing lines.

• Rotation Speed: Approximately 1,000 RPM
• Moisture Reduction: To approximately 20-30%
• Main Components: Long shaft with paddles, mesh screen tunnel
• Casing: Metal container with external electric motor

Key Features:

• High efficiency with low energy consumption
• Handles material with high water content
• Suitable for PET flakes, PP/PE flakes, and other plastic regrinds
• Patented design doubles as a friction washer for cooling and cleaning
• Water recycling capability

Our Thermal Dryer is designed for efficient moisture removal through dehydration, ideal for plastic film and PET washing lines. It’s an essential final step in reducing moisture levels to below 3%.

• Model: RSJ800
• Blower Power: 5.5 KW
• Heating Power: 36 KW
• Pipe Diameter: ⌀159mm
• Pipe Material: Type 304 Stainless Steel

Key Features:

• Continuous drying process
• Integrated cyclone separator
• Hot air dehydration system
• Efficient dust and fines removal
• Scalable design (can use multiple units in series)

Our unique Zig-Zag Air Classifier is designed to separate lightweight contaminants from heavier plastics, making it an essential component in PET bottle recycling lines. It also serves as an effective partial drying solution for the material stream.

• Separation Medium: Air
• Sorting Method: Weight-based separation
• Primary Application: PET bottle recycling
• Contaminants Removed: Paper labels, plastic labels, and other lightweight materials

Key Features:

• Efficient separation of lightweight contaminants
• Partial drying of material stream
• Versatile application in weight-based material separation
• Unique zig-zag design for enhanced separation
• Dual-exit system for separated materials
